Fumex FA1-E Laser Fume Extraction & Dust Collection System
Fumex FA1-E Laser Fume Extraction & Dust Collection System
Click to enlarge image(s)

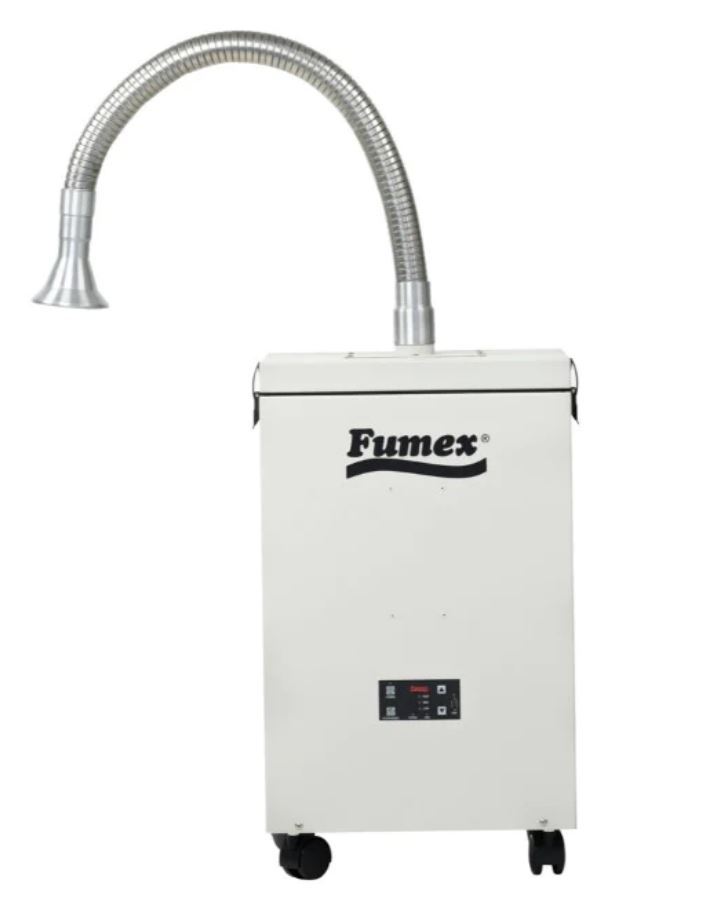

Fumex FA1-E Workshop Laser Fume & Dust Removal Machine

A High Quality Portable Source Capture Fume Extractor & Dust Collector Unit for Laser Cutting with an Advanced Long-Lasting Particle Removing HEPA Filter & Special Heavy Duty Smoke Elimination Carbon Air Scrubber that Specifically Removes The Unique Chemical Gases, Vapors & VOC's Created by VersaLasers and other Similar Small-Bed Laser Systems. Made in USA and on Sale at our Top Rated and Affordable Online Air Purifiers and Cleaners Store at the Best Possible Cheap Discount Price with Free Shipping!



Uses & Benefits:
  • Portable HEPA and Carbon Filter Laser Fume and Dust Extraction Air Purifier
  • Strong Removal of Dust and Other Particles & Fibers Created During Laser Coding, Marking, Engraving & More.
  • Strong Removal of VOC's, Fumes & Chemicals Released During Laser Processes
  • Proper Carbon Blend for Over 99% Removal of Laser Fumes
  • Clean design limits operator exposure to particulates during filter changes
  • Portable and Easy to Move
  • Compact Size
  • Long Life, Low Cost Replacement Filters
  • Low Noise
  • Made in USA!
  • Best for:  Fume & Dust Removal with Small-Bed Laser Marking, Coding & Similar Laser Applications with Laser Exhaust Output of 165 CFM or Less. Great for Small Enclosed Lasers with No Exhaust Fan. Best for Higher Odor Applications, Dust, Smoke, etc.
Standard Features:
  • Comes with Set of Filters Including : Inexpensive MERV 11 polyester pre-filter
  • HEPA Filter  99% efficient @ .3 micron with Large capacity mini-pleat construction
  • Gas/Odor Filter- Blended media allows for broad spectrum gas/odor control
  • Improved bonded carbon technology maximizes one pass efficiency
  • 5' Hose Kit Included: 2”/ 51mm or 3”/ 76mm inside diameter w/hose clamps, either size with stainless hose / funnel tip
  • Dustless construction suitable for all environments
  • Baffled – sound attenuated Electronic variable speed blower control
  • Electronic filter monitoring w/ display included
  • Calibrated electronic VOC /gas sensor included!
  • 100 % recyclable construction
  • Top Rated Fumex 2 Year Warranty
Optional Features:
  • Options High efficiency hoods
  • Optional ducted exhaust
  • Gas-specific filters
  • Start / Stop Relay (see options below)
Specifications:
  • Cabinet Construction Cabinet: 16 ga . welded steel, powder coat finish
  • Sound Level 59 dBA (quiet)
  • Unit Dimensions (L x W x H) 13.75” x 15.25” x 27.75”
  • Weight: 65 lb / 29.48 kg
  • Blowers Performance 165 CFM at 19" wc
  • Blowers Centrifugal Direct-Drive, Brushless Motor
  • Electrics 120/1/50-60 or 230/1/50-60
  • Pre-wired 3 wire power cable,
  • 7.5 ft (2.3m) w/plug
  • Amp Draw: 6.0 / 4.0
  • UL listed compliance
  • Standard Filter Set: 5.5” Pre-Filter: MERV 11, 2” - HEPA Filter: 99.97% @ 0.3 micron, 6” - 15 lb Gas / Odor filter
  • 1 x 3”, 1 x 2” or 2 x 2” air inlet
  • 5 ft. 2-ply rubber hose, smooth core
  • 2”/ 51mm or 3”/ 76mm inside diameter w/hose clamps
  • (4) Industrial grade wheels
  • Download Installation guide / Operations Manual Here

Compact Portable Fume Collector & Dust Extractor for Laser Cutting, Engraving, Marking & More!

Many health and safety hazards are associated with laser fumes from laser cutters, markers, engravers and laser printers. The type and severity of the hazard depends on the material being cut. Whatever material you are cutting, a material safety data sheet (MSDS) is a good starting point for identifying health risks. OSHA has established permissible exposure limits based on an 8‐hour time-weighted average (TWA) for hundreds of dusts and chemicals, including many metal dusts generated in laser cutting.

The Fumex FA1-E portable source capture laser fume extraction system utilizes a high performance blower and a 3 stage hybrid air filtration system to capture and treat the potentially hazardous particulates and gases generated in the laser cutting processes. Easy to use digital controls and an integrated electronic gas sensor continuously monitor the portable indoor air cleaning system. A large capacity pre-filter protects the large dust collecting HEPA filter as well as the gas and odor removing carbon scrubber providing an extremely cost-effective, efficient air filtration system. The FA1-E commercial grade air purifiers filtration capacity and powerful variable speed blower provide maximum flexibility for this industrial strength workshop laser fume extractor. Ideal for a variety of medium duty laser cutting applications where more odors and chemicals are present, the FA1-E dust collector and fume extractor machine includes a 15 lb activated carbon media filter, a full 11 lbs more than the FA1.



Fumex manufactures a complete line of laser cutter particle collector and fume extractor systems specifically designed for industrial processes that generate laser fumes. These indoor source capture fume extractors are permanent or portable, cost efficient and reliable with a 2-year warranty, and they're American Made. They are suitable for most environments including: commercial/industrial locations, offices, schools, universities, and museums. These powerful fume extraction and particle collection systems can be permanently mounted or portable, cost efficient, easy to integrate, and come with a reliable with a 2 year warranty.

Fumex laser fume extractors are designed to work with all laser marker manufacturers as well as most engravers and easily integrate into any environment. Fumex's top-rated air filtration systems consist of inexpensive pre-filters, dust collecting HEPA filters and gas and odor removing carbon scrubber that remove harmful laser marker fumes and return clean, safe, purified air to the workplace or shop. So if you're looking for a quality, low maintenance laser fume elimination and dust extraction system for laser marking or engraving applications with laser exhaust outputs of 165 CFM or less, the Fumex FA1 air cleaner is a great, cost effective extraction unit for your needs.

Order your Fumex FA1 Laser Fume Extractor & Dust Collector today from our air purifiers and cleaners store at a discount online sales price and enjoy clean, safe air in your shop, and higher overall profits! If you have any questions, give our specialists a call toll-free at 1-800-701-2513. We are here to help!


Save Money Shopping Online, and Don’t Get Ripped Off
There are not many official online retailers of Fumex laser air purification products and unfortunately the internet is full of scams. As a general rule of thumb, if the deal seems too good to be true, it probably is. Cheap cut rate online deals often end up being a used or refurbished unit, which do not come with Fumex top-rated 2 year warranties. Or even worse, you may end up buying a cheap discount air cleaner that doesn’t have the energy efficiency, features or real air cleaning power provided by top-rated Fumex laser air filtration systems.

Why Buying From Us is Better Than Buying Direct!

When you buy your money and energy saving Fumex laser fume and dust extractors and filters from us, you get a brand new unit, at the best possible price, with  Fumex amazing 2 year warranty. Our innovative partnership with Fumex allows us to ship directly from their warehouse, which cuts out the middle man and eliminates the high operating costs of traditional brick and mortar big box stores. These savings get passed directly to you, allowing us to offer brand new air quality hazard-eliminating Fumex air purifiers and filters at the best possible everyday cheap discount online sales prices. And buying from us is definitely better than direct in terms of shipping cost. If you buy direct, you'll have to pay shipping. Buying from us, however, you always get fast free ground shipping as our thanks to you for shopping with us.
