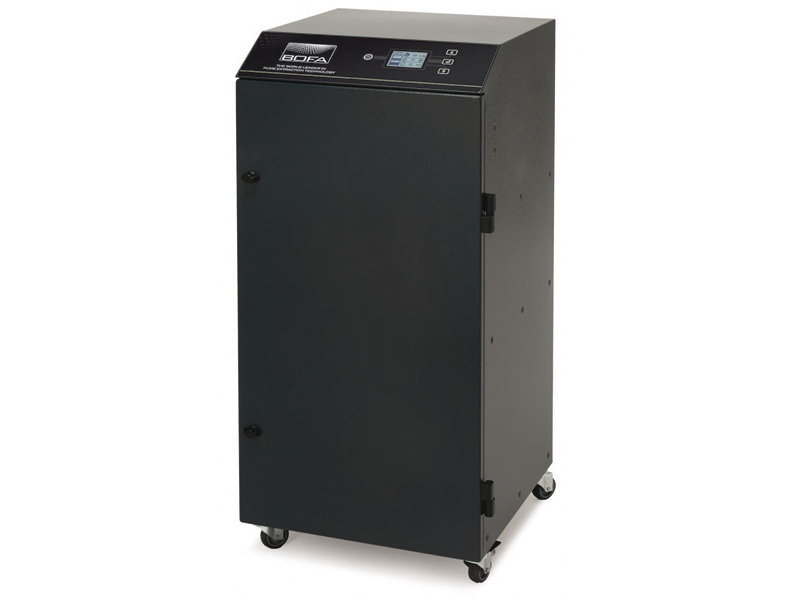

BOFA AD Oracle iQ Laser Fume & Dust Extraction System
BOFA AD Oracle iQ Laser Fume & Dust Extraction System
Click to enlarge image(s)

BOFA AD Oracle iQ Laser Fume & Dust Extraction System


A Quality Portable Fume & Dust Collector for Laser Marking, Coding, Engraving, Etc with Advanced Long Lasting Dust and Fume Filters, Smart Filter Monitors and A Special Laser Carbon Blend Designed for Laser Fumes--All at A Discount Price with Free Shipping to Continental US Locations!


Uses & Benefits:
  • Dust & fume removal for a variety of laser cutters, engravers, markers, and similar applications. Best for smaller laser units with bed sizes up to 24 x 24" and / or exhaust output of less than 223 CFM

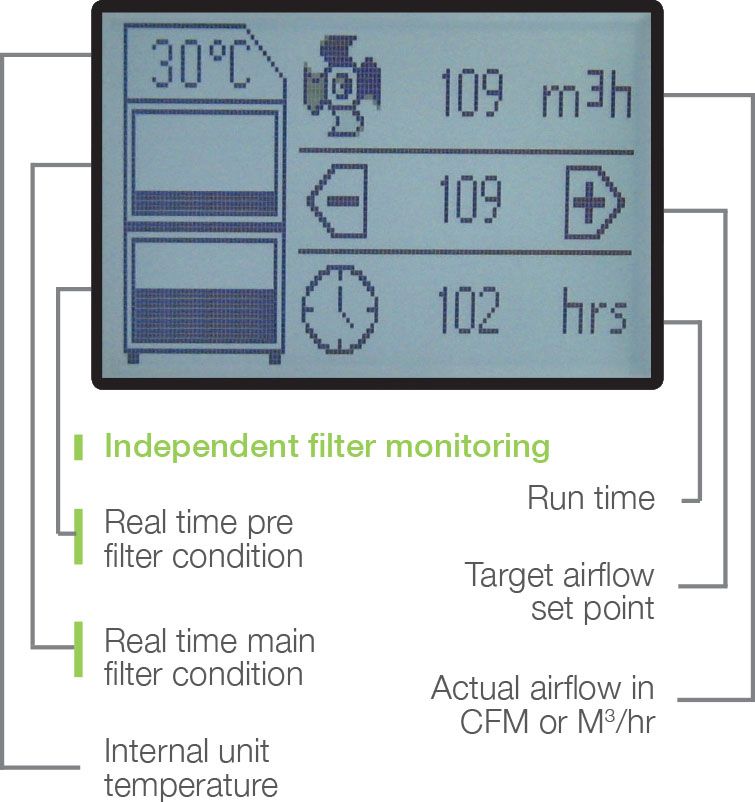

  • Includes the amazingly helpful BOFA AD iQ filter monitoring system with continous real-time updates as to particle and carbon filter saturation levels with optional VOC sensor below. The iQ monitoring system saves you money and provides ultimate safety as you know exactly when to change filters, not too soon, not too late, etc.

Recommended Applications:
  • Laser Coding
  • Laser Marking
  • Laser Fume Extraction
  • Traceability And Date Codes
  • Deep Laser Engraving
  • Laser Drilling
  • Laser Cutting
  • Laser Welding
  • Laser Etching
  • Laser Engraving
  • Laser Micro-Machining
  • Web Scoring
  • Laser Perforating
  • Laser Cleaning
  • Laser Kiss Cutting
  • Laser Pairing
  • Schools, Education, Architects, Designers & More

Standard Features:
  • 223 CFM intake airflow
  • Perfect for Bed Sizes up to 24" x 24" (possibly larger, call for details)
  • Digital flow control system
  • Blower with high airflow and pressure
  • Low cost replacement filters
  • Low noise levels
  • Filter condition indicator
  • DeepPleat flter technology
  • Advanced Carbon Filter Technology - 70 lbs
  • Reverse Flow Air Technology
  • HEPA Filter Technology
  • 17-Point SureCheck Quality Standard
  • 2 Year Warranty
Optional Features:
  • VOC gas sensor (Volatile Organic Compound)
  • Filter change / System fail signal
  • Remote stop / start interface--turns the extractor on when the laser comes on
  • Black powder coat finish standard; Brushed stainless available at extra charge and 6 week lead time.
TECHNICAL DATA
  • Power 115VAC
  • Dimensions (HxWxD) 980 x 430 x 430 mm 38.5 x 17 x 17”
  • Cabinet Construction Brushed stainless steel /
  • Powder coated mild steel
  • Airfow / Pressure 380m3/hr / 96mbar 223cfm / 96mbar
  • Electrical Data 90 - 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw
  • Noise Level < 60dBA* < 60dBA*
  • Weight 65kg 143lbs
  • Approvals UL
DEEPPLEAT DUO PRE FILTER SPECIFICATIONS
  • Surface Media Area 12m2 approx
  • Filter Media Glass Fibre
  • Filter Media Construction Maxi Pleat with webbing spacer
  • Filter Housing Zintec mild steel
  • Filter Efficiency (95% @ 0.9 microns)
COMBINED FILTER SPECIFICATIONS
  • HEPA Filter Media Glass Fibre HEPA Media Construction
  • Maxi Pleat Construction with Webbing Spacers
  • Filter Efficiency 99.997% @ 0.3 microns
  • Treated Activated Carbon 15kgs
  • Filter Housing Zintec Mild

AD Oracle iQ  ADVANTAGE LASER FUME EXTRACTOR

The ‘Best in Class’ high performance AD Oracle has now been further enhanced with the introduction of BOFA’s new iQ Operating System, combining a range of unique features into one compact unit.

The iQ Operating System performs at two distinct levels. Operators benefit from ease of operation and clarity of real time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.

The iQ system takes performance and safety parameters to a new level and ensures that maintenance downtime and ownership costs are kept to a minimum.

Order your AD Oracle Laser Fume & Dust Extractor here at the best possible discount online sales price!
