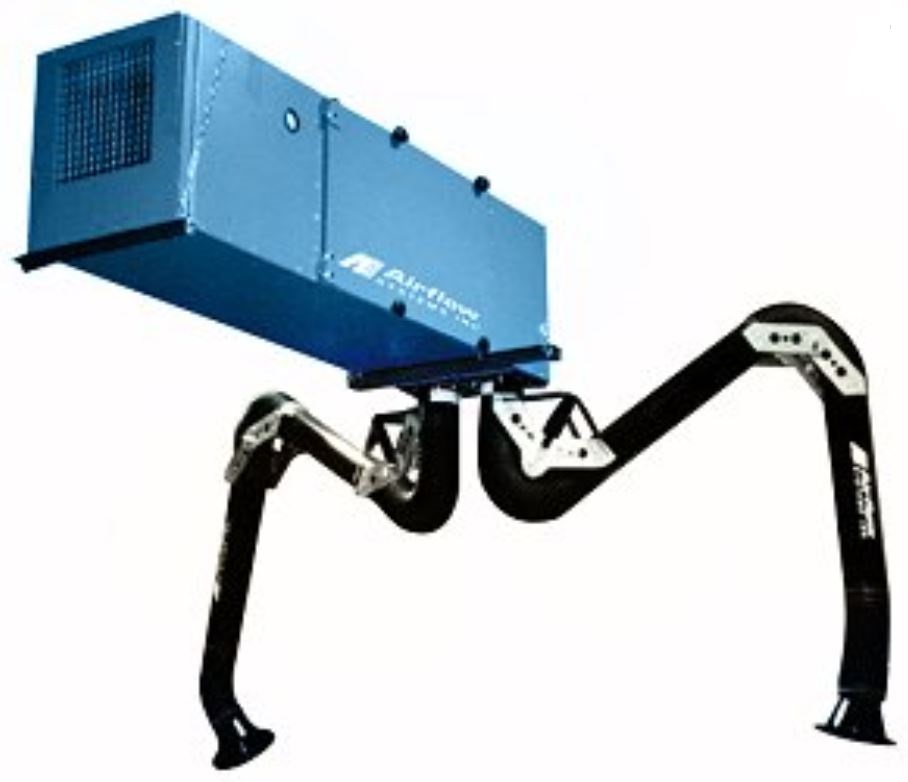

AIRFLOW SYSTEMS F122 Commercial XP Source Capture Air Cleaner System

Maintain Clean, Safe Air Quality in Your Facility or Workshop with this Amazing Commercial Industrial Explosion Proof Dust Collector and Fume Extractor Air Cleaner System with 2200 CFM Airflow, with Top-Quality Filters to Remove Dust, Smoke, Chemicals, VOC's and Solvents and a Full XP Package for Flammable Fume Removal, and 100% Made in USA--All at A Discount Price with Free Regular Ground Shipping!

Uses and Benefits

  • Commercial - Industrial Explosion Proof Air Cleaner System
  • 2200 CFM Airflow for effective particle and flammable fume capture (1100 CFM Per Arm)
  • Strong Particle Removal - Removes 95% of particles as small as 0.5 microns with MERV 15 Filter
  • Strong Chemical Fume Removal - Removes 99% of a Variety of Chemical Fumes,
  • Safely Removes Flammable Fumes - Removes 99% of Fumes such as Acetone, MEK (methyl ethyl ketone), Gasoline, Diesel, Solvent Fumes, Etc
  • Custom Carbon Media Blends Available for Removing Virtually Any Chemical Fume or VOC (Volatile Organic Compounds)
  • Can Be Ducted to Machines or Work Areas, Hoods
  • Proudly Made in USA
  • Best For: Dust, Fiber, Smoke or Flammable Chemical Removal in Commercial Workshops, Manufacturing, Warehouses, Etc.

Features:

  • Class II Belt-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark-resistant.
  • Horizontal cabinet build configuration.
  • QTY-2 Premium High Capacity / High-Performance Externally Supported (7) inch dia. x (10) foot long AFS EZ-ARMs. with (13)” dia. bell-mouth hood, unique special ratchet-type center joint, and high temperature flexible sections.
  • Three (3.0) HP TEFC CLASS-1/GROUP D ‘EXPLOSION-PROOF’ (hazardous location specification) Baldor ‘Super-E’ Premium Efficiency Baldor (3-phase) motor,
  • Quiet-Flow’ NON-SPARKING continuous duty premium blower.
  • Exclusive AFS ‘Ultra-Seal’ (no air-bypass) filter mounting system.
  • Airfoil-type (4)-way cleaned air exhaust louvers. Note: Cleaned (filtered) air will exhaust unobtrusively ‘upward’.
  • Anti-corrosive powder-coat 'AFS Blue’ paint color application to collector cabinet.
  • High-memory gasket, set in steel deep channels (for durability).
  • QTY 2 -  4" prefilters (MERV 11)
  • QTY 2  - 95% short bag filters (64 sq.ft. each, MERV 15)
  • QTY 2  - Final stage heavy-duty refillable 25 lb ‘V-bank’ type carbon gas adsorption modules (50 lb total)
  • QTY 2  -  2" pleated after-filters
  • Heavy-duty factory-fitted external exhaust silencer module (for low noise).
  • Magnehelic (large dial) type filter pressure monitor gauge.
  • Prewired to Junction Box: For fast, easy installation.
  • 1 Year Airflow Systems Warranty, Parts and Labor
Options:
  • HEPA After-Filter: provides 99.97% DOP efficiency.
  • Inlet Plenum: For ducted systems.
  • Chevron Mist Collector
  • Auto Roll Prefilter: Reduces maintenance by automatically replacing dirty media with clean filter.
Specifications:
  • Construction: 16 ga. steel cabinet, powder coated
  • Blower Pkg (HP): 3.0
  • Note: Motor starter is not included. Often cheaper to self-source; If desired from manufacturer, add $500.00 per unit
  • Noise Level (dBA): 78 (with Silencer)
  • Electrical: 3.0 HP - 208-230/460/3/60, 14/13.2/6.6 amps
  • Dimensions
  • Width: 25.00”
  • Height: 26.00”
  • Depth: 92.00”

Powerful Commercial-Grade Source-Capture Dust and Fume Extraction

Harmful toxic dust and flammable fumes are often a problem in manufacturing, parts cleaning and warehouse operations. The Airflow Systems F122-HE is an effective tool that safely removes pollutants like smoke, dust, flammable solvents, chemicals and VOC's to help you increase performance and revenue, while preventing workplace injury and maintaining compliance with OSHA and local regulations .

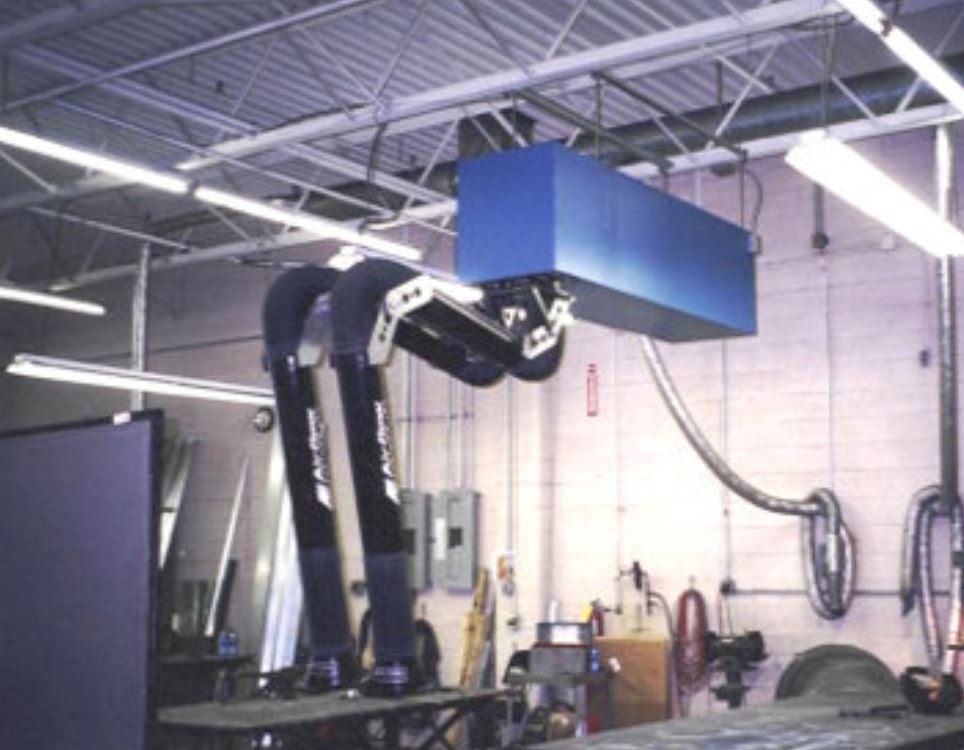

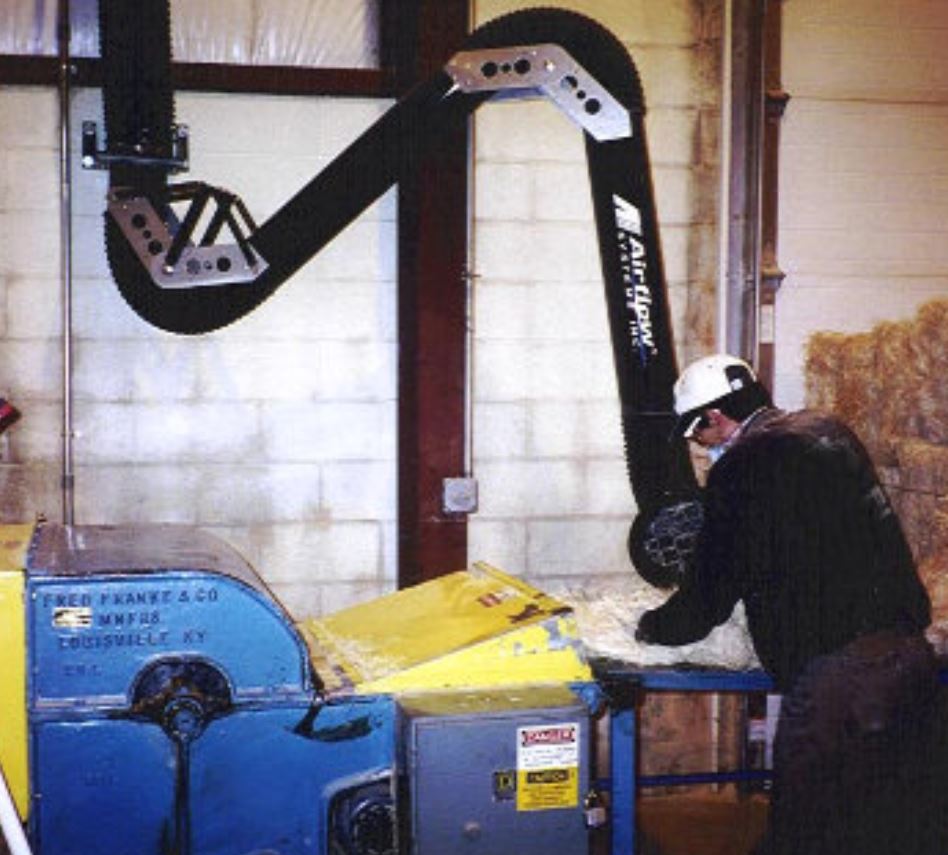

The Airflow Systems F122-HE comes with a full XP (explosion proof) package with non-sparking blower, XP wiring, etc, as well as two 10 foot capture arms that can reach down to work benches and tables to remove flammable solvent and chemical fumes and dust.  With the F122-HE mounted on a wall or overhead, you'll have effective explosion proof fume and dust collection while preserving your floorspace, perferct for high traffic area that don't need more machines on the floor.

The F122-HE comes complete with MERV 15 particle filtration as well as 2-25 lb refillable activated carbon V-bank filters, plus an after filter to prevent carbon dust from escaping. The Airflow Systems F122-HE is perfrect for removing chemical fumes such as toluene, acetone, MEK, etc. Just employ the correct number of units in the space to cover the workstations where these pollutants are a problem, and you've got protection in place.


The Airflow Systems F122-HE is a great choice for space and money-saving explosion proof fume extraction and dust collection all in one unit. Call our specialists today at 1-800-701-2513 for a free evaluation of your application, or order yours here at the best possible discount online sales price.
