AER DD-800 Downdraft Table
Click to enlarge image(s)

AER Control Systems DD-800 Downdraft Table

Maintain Cleaner Air Quality in Workshops, Manufacturing Facilities or Laboratories with this Top-Rated Commercial Dust Collection Downdraft Table and Work Bench with Static Control Rubber Mat.  Here We Offer The Best Portable Dust Removal Downdraught Desk with Your Choice of Reusable Shaker Filters or High Quality Industrial Grade HEPA Filter System That Quickly Extract Particles from Wood Working, Carving, Grinding, Sanding, Sawing, Cutting & More, Made in USA, and All at The Best Possible Cheap Discount Online Sales Price with Free Shipping.


FEATURES

  • Direct drive forward curved blower with a 1HP TEFC motor delivering 800 CFM at 3 inches external static pressure
  • 115v single phase
  • Low noise level at 66 dbA
  • Manual foot shaker to manually clean the
  • Pull out dust drawer with a holding capacity of 0.9 cubic feet of dust!
  • Standard 4 inch inlet collar which is mounted on the rear of the unit
  • Bubble gasket seal on blower and filter access doors
  • 22 envelope-pocket, flame retardant cotton sateen filters standard
  • Total filter area is 55 square feet with tool-less filter replacement
  • Built-in sound attenuator
  • 16 ga metal construction with a heavy duty textured powder coat finish
  • Table Top is of aluminum construction with 3/4” Holes
  • Includes 24” Fluorescent Light Kit
  • Includes Caster Kit
  • Wrap Around body with swing open doors to enclose part on table
  • Table top velocity is 250 FPM
  • Dimensions  25 x 24 x 72"
  • Weight: 97 lbs.
  • 1 Year Warranty

AER Control Systems’ Downdraft Bench 800 (DD-800) is designed to provide efficient, cost effective control of dry dusts, fume, and smoke generated from sanding, polishing, buffing, grinding and other processes.  With the DD-800, you get a top-rated dust removal work table that offers some of the best particle extraction as well as static control for cutting, wood work & more in home & industrial shops & laboratories

Typically used for light to moderate concentrations of dry contaminants, the DD-800 is the AER Control Systems Dust Cab 800 Dust Collector with a downdraft table top mounted on top. The DB-800 is compact and portable, the top is an aluminum surface with non-sparking rubber mat to protect against parts that cannot be scratched and can support a table load of 50 pounds per square feet maximum.

The top has a back enclosure with a light fixture and hinged side wing panels. The filters in the Downdraft Bench 800 are shaker style with standard cotton sateen bag material and cleaning is accomplished using a foot pedal to wrap the bottom of the bags. The DB-800 has a design airflow of 800 CFM (250 feet per minute), which is strong enough to keep a variety of dust particle types out of your way.

The DB-800 is designed to be powered up as soon as you receive it by offering a power cord and switch operating at 115 volts. Optional rubber mats and other surface types are available for placing on the table top.

The DD-800 Downdraft Table System is one of the best quality, lowest cost dust collection work stations on the market. Order yours today!

At our online store, we make it easy for you to get the best commercial and industrial air filtration systems at discount prices with free shiping due to our extremely low overhead. Call us today at 1-800-701-2513 to discuss your application. We are here to help!

OPTIONS:
  • HEPA Module on the rear exhaust side of the unit
  • Portable unit with a caster frame
  • Polyester felt and other media available
  • Bolt-on rear spark trap
  • Downdraft table top
  • 208-230/460 volt motor
  • 1500 CFM Unit
  • 4" x 7' Arm for source capture applications
  • Bolt-on rear spark trap
  • 208-230/460 volt motor
  • Non sparking, scratch resistant rubber mat
  • Different work surfaces

This Package Includes:

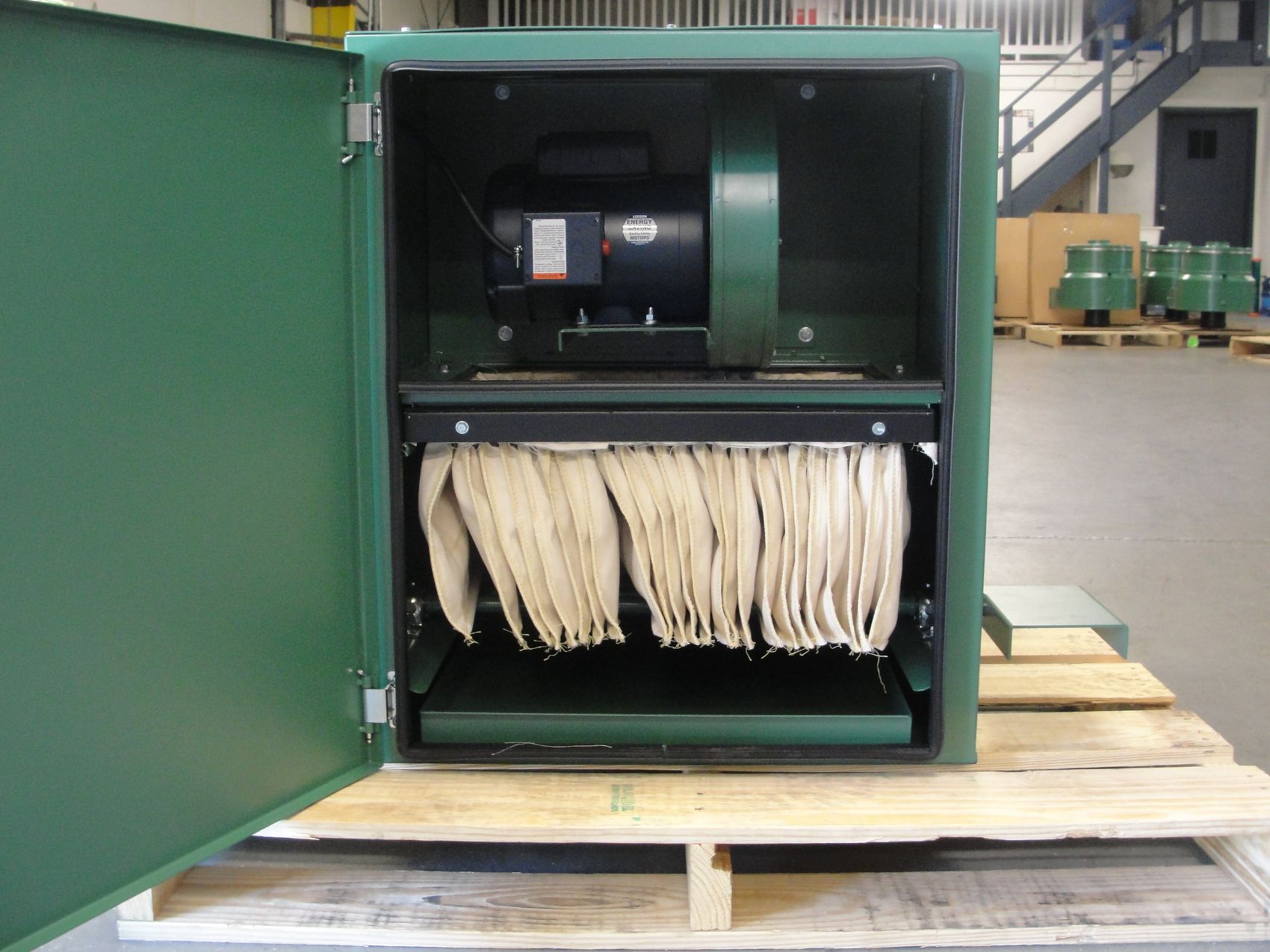

1  AER Control Systems Dust Cab 800 Particle Filtration System with 4" Intake Collar, 1HP TEFC motor,
1 Cotton Sateen Filter Bag
1 Backward curve blower,
1 Dust drawer,
1 Caster Kit,
1 Aluminum Tabletop,
1 Wrap Around Body
1 Light Kit
1 Power Cord and Switch.
1 Owners Manual
1 Year Warranty

CALL FOR FREE CUSTOM QUOTE DESIGNED FOR YOUR FILTRATION NEEDS!
