BOFA DustPRO Universal Laser Dust Collection System

Home | Product Search | Site Map | Checkout | Track Your Order

Click to enlarge image(s)

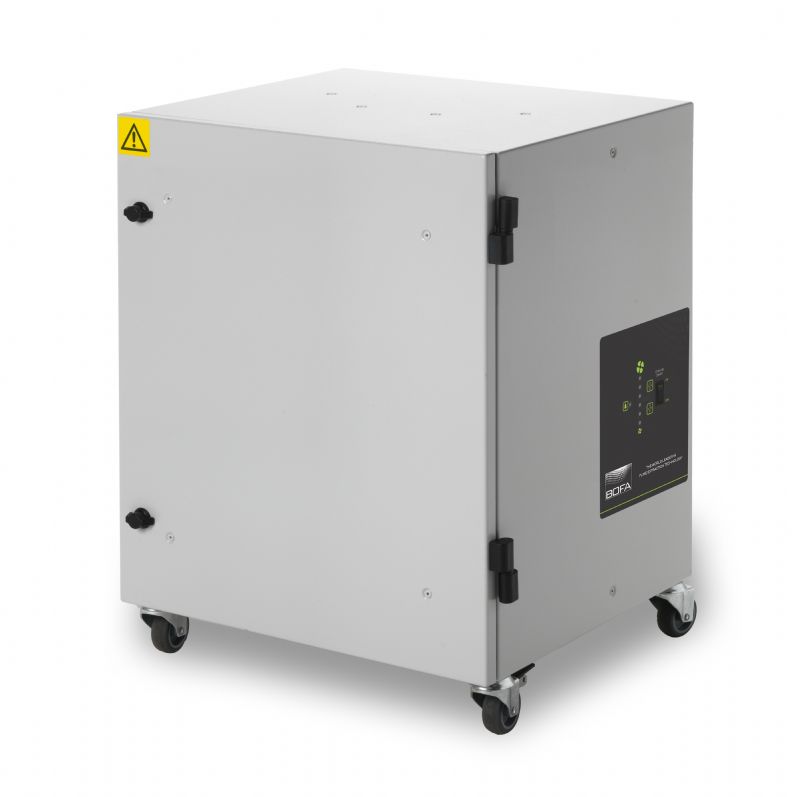

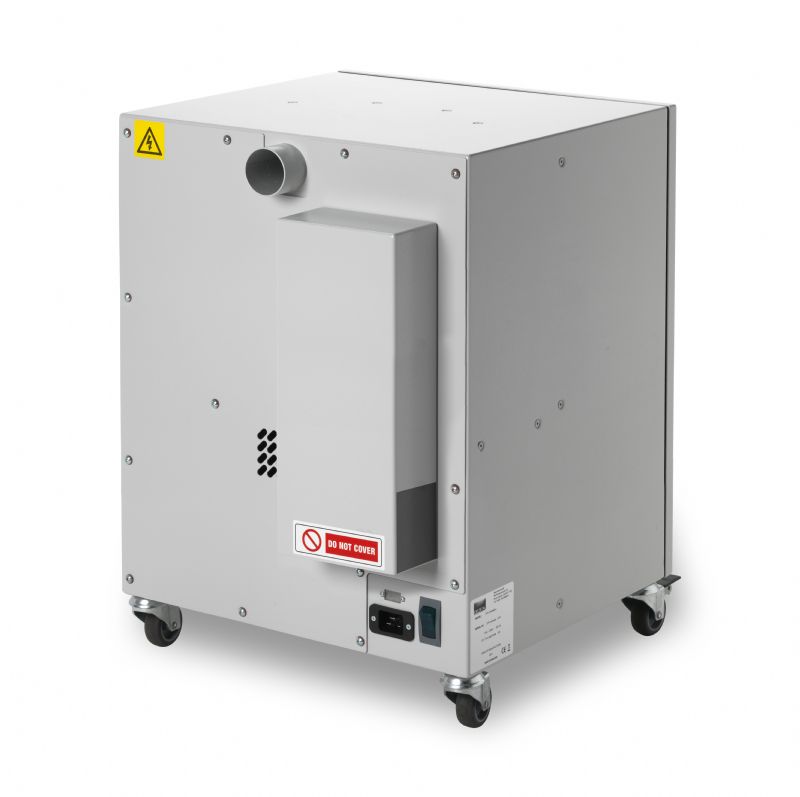

BOFA DustPRO Universal Industrial Particle & Dust Extractor

A High Quality, Low-Maintenance Portable Dust Collector Designed for Laser Cutting, Drilling, Marking & Other Applications, with an Advanced Long-Lasting High-Volume Bag Filter and HEPA for Quiet, Effective Dust Removal at 99.997% to 0.3 Microns.

Uses & Benefits:

Effective, reliable air filtration for connection to various machines where dust and particle removal is the main concern.
Choose this unit when laser or machine cutting, engraving, marking etc materials that produce little to no odor, metals, etc.
Compact space saving design, quiet operation and strong 167 CFM intake
Universal - removes dust and particles in a wide variety of applications with long life filters for minimal maintenance.

Recommended Applications:

PCB Cutting
Cutting
Drilling
Linishing
Marking
CNC Engraving
Routing
Paper Cleaning
Paper Processing
Dental Labs
Mail Sorting Machines

Standard Features:

Digital speed control
Auto sensing voltage (90-257v) for global use
Small footprint
Low noise levels
Filters with long life and low replacement cost
50 mm (1.96 inch) diameter intake flange for higher velocity

Optional Features:

Remote stop / start interface
Filter change / System fail signal

Unit Specifications:

Voltage 230V or 115V
Dimensions (HxWxD) 653 x 440 x 395 mm 25.7 x 17.3 x 15.5”
Intake duct size: 1.96" / 50 mm
Cabinet Construction Powder coated mild steel Powder coated mild steel
Airflow / Pressure 285m³/hr / 96mbar 167cfm / 96mbar
Electrical Data 115 - 230v 1ph 50/60Hz
Full load current: 12.5 amps / 1.1kw
Noise Level < 66dBA* < 66dBA*
Weight 34kgs 75lbs

Bag Filter Specifications

Filter Media Glass Fibre
Filter Media Construction Bag Filter
Filter Efficiency H10 (99% @ 0.3 microns)

HEPA Filter Specifications

HEPA Filter Media Glass Fibre
HEPA Media Construction Maxi Pleat Construction with
Webbing Spacers
Filter Efficiency 99.997% @ 0.3 microns

BOFA’s DustPRO Universal extraction unit has been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and turning. Great for labs, workshops, mailrooms, or anywhere there's a machine producing dust and particles

One of the main problems with other router extraction relates to the type of pump used. Most have brushed motors which are noisy in operation and frequently burn out, with the average life of brushes being around 800 hours. The pump used in the DustPRO Universal is brushless and designed for continuous running with minimum 30,000 hours use before servicing. They generate high vacuums and are quiet in operation.

The large capacity bag filter has a very high efficiency, removing 99% of particles as small as 0.3 microns. The air is then filtered by a HEPA, further removing 99.997% of dust and particles as small as 0.3 microns and even smaller as the filter begins to fill up, as the pore size is further reduced, etc.

Order your DustPRO Universal Particle & Dust Extractor here at a discount online sales price and enjoy quiet, dust-free working conditions in your shop, or laboratory!

BOFA's 17 Step SureCheck System Ensures Quality

In addition to higher performance, better, longer lasting filters and lower maintenance, BOFA provides the ultimate in value by ensuring quality and long life by sending each and every product through their rigorous 17 step SureCheck quality control system. So if you want the very best, light duty fume and dust extraction system designed specifically to work with laser systems, order your AD-350 Laser Fume & Dust Extracation System today for years of trouble-free dependable, consistent performance.

Save Money Shopping Online, and Don’t Get Ripped Off

There are not many official online retailers of BOFA Americas laser air filtration products and unfortunately the internet is full of scams. As a general rule of thumb, if the deal seems too good to be true, it probably is. Cheap cut rate online deals often end up being a used or refurbished unit, which do not come with BOFA Americas top rated 10 year warranties. Or even worse, you may end up buying a cheap discount air cleaner that doesn’t have the energy efficiency, features or proven air cleaning power provided by top-rated BOFA Americas air filtration systems.

Why Buying From Us is Better Than Buying Direct!

When you buy your money and energy saving BOFA Americas air filtration products from us, you get a brand new unit, at the best possible price, with BOFA Americas's amazing 3 year warranty. Our innovative partnership with BOFA Americas allows us to ship directly from their warehouse, which cuts out the middle man and eliminates the high operating costs of traditional brick and mortar big box stores. These savings get passed directly to you, allowing us to offer brand new allergy and asthma symptom-eliminating BOFA Americas air purifiers and filters at the best possible everyday cheap discount online sales prices. And buying from us is definitely better than direct. If you buy direct, you'll have to pay shipping. Buying from us, however, you always get fast free ground shipping as our thanks to you for shopping with us.

If you have any questions give us a call or send us an email and one of indoor air purification experts will be happy to help.
